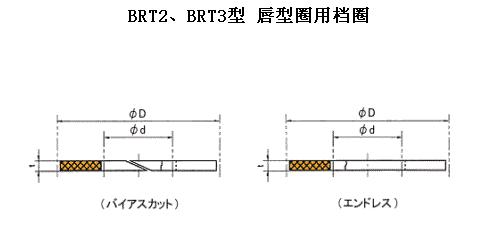

BRT2/BRT3支撑环

支撑环的公称尺寸

NOK代码

d

D

t

BRT2

BRT3

8

18

2

GN4773-V0

GN0725-V0

10

20

2

GN4774-V0

GN0733-V0

14

24

2

GN4775-V0

GN0745-V0

15

28

2

GN4776-V0

GN6445-V0

16

26

2

GN4777-V0

GN0751-V0

18

26

2

GN4778-V0

GN6377-V0

18

31

2

GN4779-V0

GN6446-V0

20

28

2

GN4780-V0

GN6447-V0

20

30

2

GN4781-V0

GN0762-V0

20

33

2

GN4782-V0

GN6448-V0

22

35

2

GN4783-V0

GN6449-V0

22.4

30

2

GN4784-V0

GN6450-V0

22.4

33

2

GN4785-V0

GN6451-V0

23.5

31.5

2

GN4786-V0

GN6452-V0

25

35

2

GN4787-V0

GN0781-V0

25

38

2

GN4788-V0

GN6453-V0

25.5

35.5

2

GN4789-V0

GN6454-V0

27

40

3

GN4790-V0

GN6455-V0

28

35.5

3

GN4791-V0

GN6456-V0

28

40

3

GN4792-V0

GN6457-V0

28

41

3

GN4793-V0

GN6458-V0

30

40

3

GN4794-V0

GN6361-V0

30

43

3

GN4795-V0

GN6459-V0

31.5

41.5

3

GN4796-V0

GN6460-V0

31.5

44.5

3

GN4797-V0

GN6461-V0

34

50

3

GN4798-V0

GN6462-V0

35

45

3

GN4799-V0

GN6463-V0

35

50

3

GN4800-V0

GN0816-V0

35.5

45

3

GN4801-V0

GN6464-V0

35.5

51.5

3

GN4802-V0

GN6330-V0

40

50

3

GN4050-V0

GN6465-V0

40

56

3

GN4803-V0

GN6466-V0

45

55

3

GN4804-V0

GN6467-V0

45

56

3

GN4805-V0

GN6468-V0

45

61

3

GN4806-V0

GN6469-V0

47

61

3

GN4807-V0

GN6470-V0

47

63

3

GN4808-V0

GN6471-V0

50

60

3

GN4335-V0

GN6302-V0

50

66

3

GN4809-V0

GN6329-V0

53

63

3

GN4693-V0

GN6413-V0

55

65

3

GN4810-V0

GN6472-V0

55

71

3

GN4811-V0

GN6473-V0

56

66

3

GN4766-V0

GN6474-V0

60

70

3

GN4676-V0

GN6444-V0

60

71

3

GN4812-V0

GN6475-V0

60

76

3

GN4813-V0

GN6476-V0

63

73

3

GN4814-V0

GN6477-V0

64

80

3

GN4815-V0

GN6478-V0

65

75

3

GN4816-V0

GN6479-V0

67

77

3

GN4697-V0

GN6480-V0

70

80

3

GN4651-V0

GN6362-V0

70

90

3

GN4817-V0

GN0910-V0

71

80

3

GN4818-V0

GN6481-V0

71

81

3

GN4819-V0

GN6482-V0

75

95

3

GN4224-V0

GN0920-V0

80

90

3

GN4820-V0

GN6483-V0

80

100

3

GN4095-V0

GN0927-V0

85

100

3

GN4687-V0

GN6484-V0

85

105

3

GN4821-V0

GN0932-V0

90

105

3

GN4698-V0

GN6485-V0

90

110

3

GN4109-V0

GN0939-V0

95

110

3

GN4822-V0

GN6486-V0

95

115

3

GN4823-V0

GN0945-V0

98

112

3

GN4824-V0

GN6487-V0

100

115

3

GN4512-V0

GN6488-V0

100

120

3

GN4119-V0

GN0952-V0

105

125

3

GN4825-V0

GN0959-V0

106

120

3

GN4826-V0

GN6489-V0

112

125

3

GN4827-V0

GN6490-V0

112

132

3

GN4828-V0

GN0970-V0

120

140

3

GN4132-V0

GN0982-V0

125

140

3

GN4481-V0

GN6491-V0

125

150

3

GN4401-V0

GN6135-V0

135

160

3

GN4829-V0

GN6492-V0

136

150

3

GN4830-V0

GN6493-V0

140

165

3

GN4831-V0

GN6494-V0

145

160

3

GN4551-V0

GN6495-V0

145

170

3

GN4832-V0

GN6496-V0

150

165

3

GN4833-V0

GN6497-V0

155

170

4

GN4834-V0

GN6498-V0

155

180

4

GN4157-V0

GN1016-V0

160

175

4

GN4835-V0

GN6499-V0

160

185

4

GN4540-V0

GN1020-V0

165

180

4

GN4836-V0

GN6500-V0

170

180

4

GN4837-V0

GN6501-V0

170

200

4

GN4838-V0

GN6502-V0

175

190

4

GN4839-V0

GN6503-V0

175

200

4

GN4460-V0

GN1031-V0

180

200

4

GN4470-V0

GN6372-V0

180

205

4

GN4427-V0

GN1035-V0

190

200

4

GN4840-V0

GN6504-V0

190

210

4

GN4841-V0

GN6505-V0

200

220

4

GN4835-V0

GN6276-V0

200

225

4

GN4560-V0

GN1050-V0

204

224

4

GN4842-V0

GN6506-V0

205

220

4

GN4843-V0

GN6507-V0

210

230

4

GN4627-V0

GN6352-V0

220

240

4

GN4444-V0

GN6508-V0

225

245

4

GN4844-V0

GN6509-V0

225

250

4

GN4416-V0

GN1065-V0

230

250

4

GN4635-V0

GN6510-V0

240

260

4

GN4845-V0

GN6511-V0

250

270

4

GN4459-V0

GN6512-V0

250

275

4

GN4191-V0

GN1078-V0

255

280

4

GN4846-V0

GN6513-V0

260

285

4

GN4847-V0

GN6514-V0

265

290

4

GN4848-V0

GN6318-V0

265

297

4

GN4849-V0

GN6515-V0

270

295

4

GN4850-V0

GN6516-V0

270

300

4

GN4851-V0

GN1089-V0

275

300

4

GN4852-V0

GN6517-V0

280

305

4

GN4410-V0

GN6518-V0

280

312

4

GN4853-V0

GN6519-V0

290

315

4

GN4854-V0

GN6520-V0

300

325

4

GN4855-V0

GN6521-V0

300

332

4

GN4856-V0

GN6522-V0
